Ledboy micro

A tiny console to take with your keys with only one button.

grossofabiangrossofabian
Following
Liked Like project

Just one more thing

To make the experience fit your profile, pick a username and tell us what interests you.

Pick an awesome username
hackaday.io/
Your profile's URL: hackaday.io/username. Max 25 alphanumeric characters.
Pick a few interests
Projects that share your interests
People that share your interests

We found and based on your interests.

Choose more interests.

OK, I'm done! Skip
Similar projects worth following
103 views
0 comments
1 followers
View Gallery
Not really practical nor easy to assembly but surprisingly usable for its size, based on the attiny 402 with 4k of flash and a oled 64x32 screen.
Only one button a buzzer and a lipo rechargeable battery all contained in a very small package.
The game is a space invader clone, the button makes your ship move to the right and if you release it, it moves to the left, the ship auto fires.

Measuring just 16x|7x12mm I think is one of the smallest devices that can play a game with a included screen.

I don't really recommend to make your own because of the difficulty involved in soldering in such a constrain space.
All files linked bellow, however most probably I wont provide any detailed tutorial in how to build one.

MicroSpaceInvaders_0.9.3.zip

code containing the game for Arduino needs megaTiny core and tinyWire library

x-zip-compressed - 9.50 kB - 09/17/2023 at 19:43

Download

top.stl

Top case

Standard Tesselated Geometry - 24.30 kB - 09/17/2023 at 19:42

Download

boton.stl

button for the case

Standard Tesselated Geometry - 53.50 kB - 09/17/2023 at 19:42

Download

base.stl

bottom case

Standard Tesselated Geometry - 143.05 kB - 09/17/2023 at 19:42

Download

Gerber Ledboy Micro 1.2_2023-09-17.zip

Gerber pcb

x-zip-compressed - 66.64 kB - 09/17/2023 at 19:42

Download

Enjoy this project?

Share

Discussions

Similar Projects

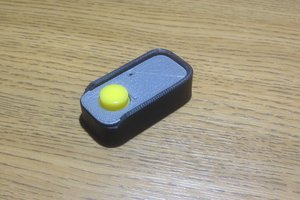

A super compact IOT button the size of your thumb with built in battery and bluetooth low energy using the Light Blue Bean
Project Owner Contributor

IOT Button Using the Light Blue Bean

robin-hartleyRobin Hartley

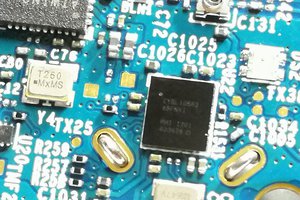

I took some pictures of the circuitry in the Amazon Dash. I think there is a lot more than just a simple button here. What do you think?
Project Owner Contributor

Amazon Dash Teardown

ethan-arquetteEthan Arquette

h4ck n00b5
Project Owner Contributor

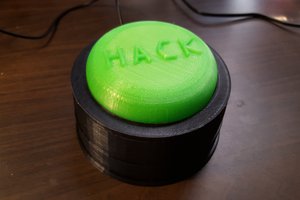

HACK Button

ericEric

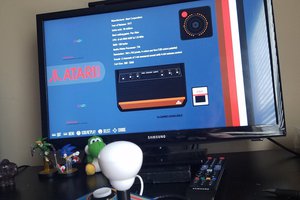

An Atari 2600 emulator packed into a plug-and-play Ms. Pac-Man game, using a Raspberry Pi Zero W
