• Arrival

    Shiela Dixon • a day ago • 0 comments

    Today these arrived and I'm very excited.

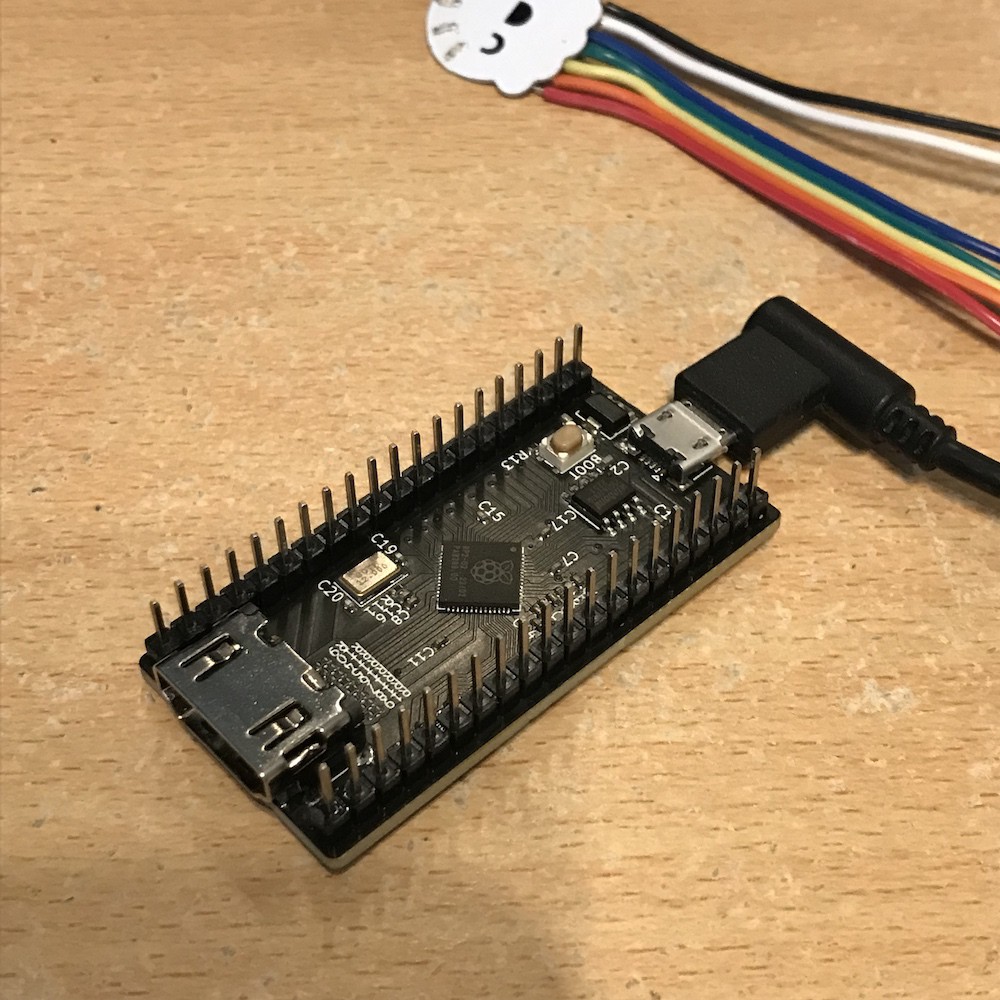

    This is what I think of as the underside with the header pins soldered in.

     I designed this because I needed:

    • a RP2040 board with HDMI, sorry, DVI video out
    • all of the GPIO broken out
    • a DIP-style form factor, preferably black

    The RP2040 Feather DVI almost met the spec but it's stingy with the number of GPIO it breaks out.

    My reasons for going this 'daughterboard' route rather than putting the surface-mount components on my module's pcb are given in my TMSEMU project logs.

    I'm sure that this will be useful to me in other projects and maybe to others.

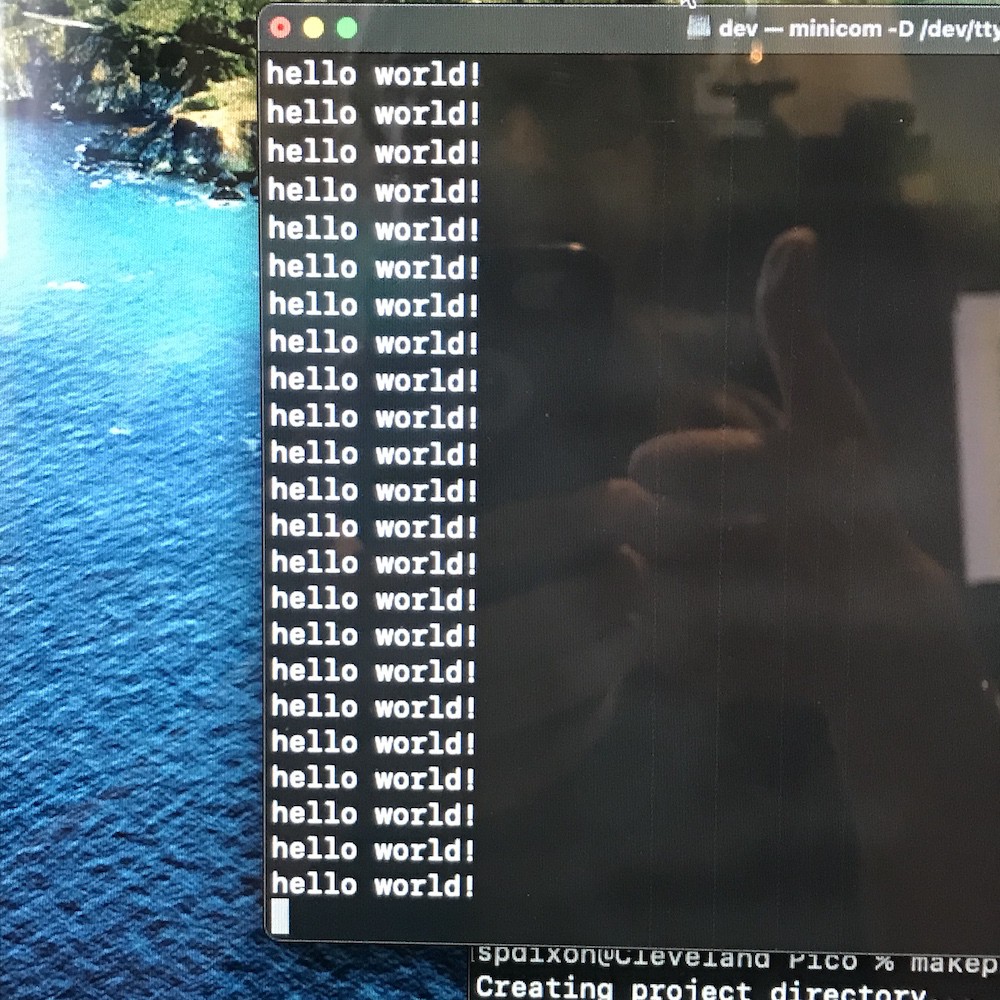

    First test, a quick 'hello world' to check that I could load and run a program

    YAY! Next to test the HDMI, sorry, DVI out. This one of Adafruit's Feather DVI examples

    YAY! again.   Next test, do all of the GPIO work?

    And YAY! again. Testing 6 at a time using my logic squid. This board breaks out all 30 GPIO, less the 8 that are used for HDMI, sorry, DVI. This is one big advantage over using VGA output which hogs a large proportion of the GPIO.
    (I had one minor heart-stopping moment when GPIO29 didn't seem to be working, but that was a bug in my 'blinky' program. I forgot that 0-29 is actually 30 values!)
