• ZX-81 Restoration news:

    03/13/2023 at 17:00 0 comments

    I moved development of the ZX-81 off the pages updates and to it's own Hack-a-Day project here : https://hackaday.io/project/189795-hbkd-81 if any body was following this space for updates on the restoration they are there :)

  • HBSound Block diagrams from my lab notebook

    01/30/2023 at 04:13 0 comments

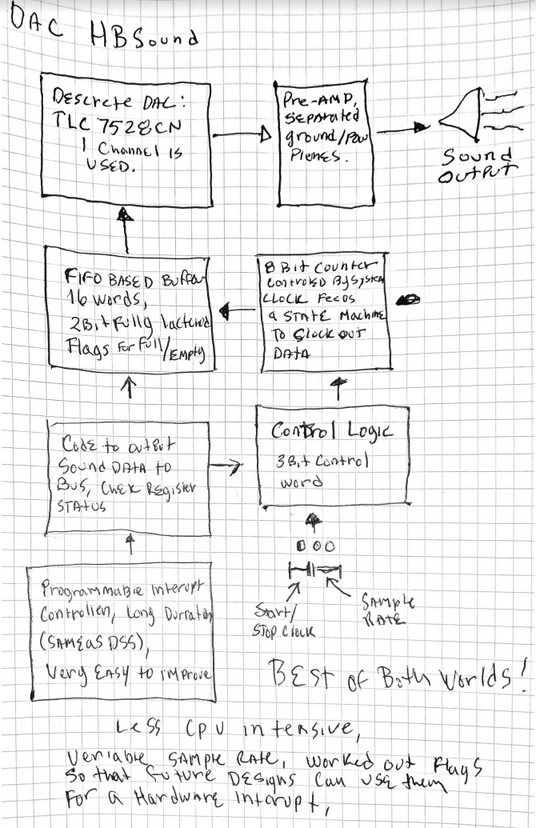

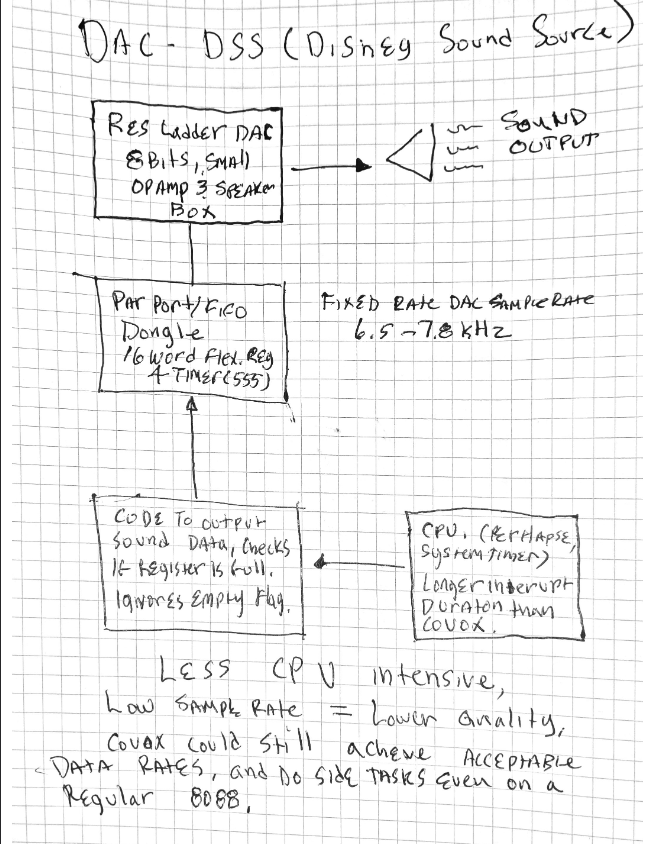

    Here's some block diagrams for the HBSound project I pulled from my notebook:

    I'll link the next ZX-81 blog here if you are wanting to skip to the next segment when that comes, right now waiting on a replacement modern ULA to be delivered from New Zealand.   Hope to have more updates on that soon but for now enjoy my sloppy handwriting


  • Interesting Fail Mode, finding noise and isolating the issues.

    01/18/2023 at 04:24 2 comments

    Success! well sort of:

    Initial false start.  I was able to get a 'K' Prompt to load, but with astoundingly bad ghosting.   I went to work checking for the common things. --- ingress from cracked traces or loose connections the usual analog-ish type stuff.  In Broadband when we have ghosting in a analog signal, we look for an impedance mismatch base band is not much different.

    I checked with the scope and found there was very irregular reflections which got slightly better if I probed the reference clock circuit.  I figured this was more about the probes veritable capacitor of a few pF then the huge resistor in my x10 probe.  Checking for other obvious signs of a crack I decided to just slide the ULA from its socket slightly and re-seat it.  This had little to no effect and I ran into some more issues with resets and starting up properly.

    Checked a few more things and found that the !OE line on the ram upgrade was not connected but bent out.  A quick google search found the specific mod being done here and I sorted the issue by grounding the pin (in this design only one of the enable lines are needed).

    I flipped the board over and checked the pads under the ULA and found a few of them were not soldered very solidly so i re flowed a few of the pads.  When i pulled back my iron from the third pad I started to uncover the problem --- the pins were coming loose from the socket above!

    I removed the big chips from the board and found that most of the larger chip sockets were completely corroded .  I don't have very sophisticated de soldering equipment, a manual pump, temperature controlled soldering iron and a good amount of solder wick.  The easiest way of going about careful chip removal in a board this old without an automatic de soldering pump is to cut up the sockets and pull them out 2 or 3 pins at a time.  This sounds time consuming but its actually quite efficient and probably only took about 15 minutes to remove all 3 sockets.  Since I had the mask ROM and the CPU out, I replaced both with newer parts -- CMOS Z80, and a 16K 120nS EPROM.   The Mod for the EPROM was fairly trivial, I just bent out the pins that did not line up and manually routed them which amounts to only 3 of the pins.

    I ended up cracking a trace replacing this socket for the Mask ROM.   I ran a wire on the back side to the next point in the design (on of the bus arbitration resistors):

    After I replaced the broken trace I plugged everything back in, plugged in the computer and immediately ... got no picture...  Its a 40 year old machine with aging corroded parts I have to be realistic and so I half expected this.  This lead me down a number of avenues, I wound up toning out all of the traces using the schematics, and replacing the RAM expansion after discovering it was causing some of the lower address lines to stay low.

    SO... The saga continues.

    I went back to basics, Started probing some of the lines coming from the ULA, determined I was getting a sync signal but it looked very noisy:


    So the amplitude should not shift like that, and though you cant tell because this is a still it does, roll across the top as well. - - it should be fairly flat. The line data is there (you can't see it in this screenshot.) and I pulled the time base out  so you can see it.    This looks like an oscillation, the clock for the CPU, the line clock and the sync are all made inside the ULA.

    A new approach (Lets remove the DC Offset):

    We have a sync but its very bad, so bad in fact that the TV can not see it as it just looks like DC voltage levels -- the best way to trouble shoot the issue at this point is to try to get the TV to display "something".    I pulled the back porch mod; and built the simplest composite mod (from byte delight ~ image is linked:

    This example from byte delight

    after constructing the mod as designed - I added a 300uF or so electrolytic capacitor (to remove...

    Read more »
